Light Commercial Vehicle


The light commercial vehicle height for our spray booths is 3 meters internal. With this height it allows you to spray big vans and other unique vehicles which need extra height. All our LCV spray booths can have the same extraction methods as our standard spray booths, so if your in need of more height our LCV range is what you want.




X-WORKS PACKAGES

We are now offering our fantastic range of booths as X-Works packages. These are the same top quality booths and come complete with a comprehensive step by step installation guide, full user manual.

Prices starting From £16,500.00 + VAT.

  • All our Spray booths are manufactured, by us.

  • Our Booth panels are 50mm thick insulated, white inside and out.

  • Our Spray booths are designed to create an even airflow throughout the cabin for optimal performance.

  • All of our booths are direct gas fired system suitable for natural gas or LPG.

  • Our Control Panels allow spray and bake times and also temperature settings to be digitally adjustable.

  • All of our Standard and Light commercial booths come with 2 or 3 leaf door set, with 2.4 or 3 meter wide opening for easy access.

  • Our X-Works package includes 2 x 3m lengths of 630mm dia spiral, 1 x inlet cowl & 1 x water ingress damper.

  • Roller shutter doors are available as an optional extra and are available on all our range.

  • Rear extraction, rear extraction with roof mounted plant, side extraction or pit extraction are available.

  • All booths come with a pressure locking personnel door.


Our X-Works package is supply only, delivery, installation and commission can be arranged at an additional cost. To Enquire about our X-Works package please click here




RAISED FLOOR BOOTH

Raised floor spray booth gives you a full floor extract without the groundwork of a down draught. The 350mm raised floor gives the booth an even airflow throughout, and the plant can be mounted on either side or at the back of the booth, allow an extra 1.5m to overall booth size for the plant. Internal humpback ramp design allows you to save workshop floorspace or external ramp design can be installed if preferred.

Prices start at:- Standard £27,499 + VAT, fitted.

Specifications

  • LCV: Inside: 8.0m long x 3.9m wide x 3.0m high cabin. Outside: 8.13m long x 4.0m wide x 3.9m high

  • Extra width and height 3 leaf door opening, for easier entry and exit, 3m wide x 3.3m high

  • Either side or rear  mounted plant


    •  LCV booths comes with our 4kw low noise centrifugal fans with an air flow of 18,000 m3.

  • Double Pitched humpback ramp can be placed internally or externally.

  • Double skin, pre-coated white polyester finish, inside and out

  • Running costs of less than £2.50/hour

  • Ducting package included: x2 3.0m spiral + inlet and outlet cowls

  • Extra ductwork available at a cost

  • Suitable for use with water based paints

  • Booths available from stock, for quick delivery and installation

  • Fully detailed operating manual provided

  • Dedicated installation helpline

To Enquire about our Raised Floor Spray Booths please click here

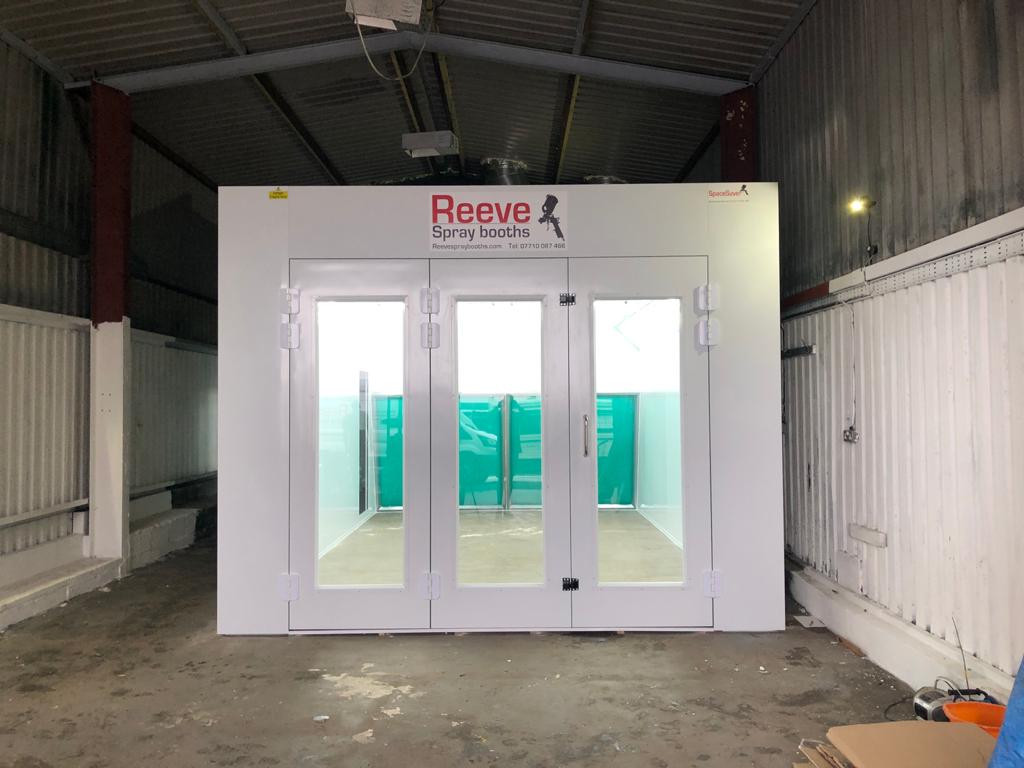

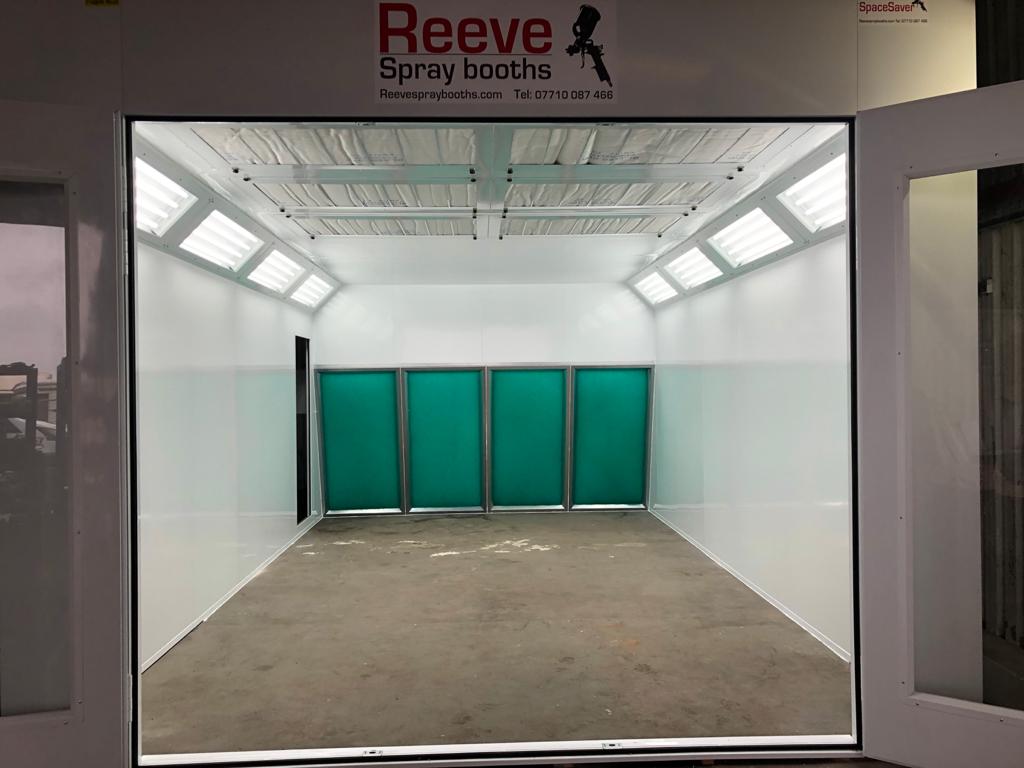

 SPACESAVER BOOTH

The Spacesaver spray booth does exactly what it says in the title. It saves you space by being able to fit into the corner of your garage. It does this because it has the extraction area built within the rear of the booth and also has roof mounted plant, instead of the usual pit extraction with the side extraction plant. It also saves you more money as you will not need to dig a pit.

Prices start at:- Standard £19,499 + VAT, fitted.

Specifications

  • LCV: Inside: 7.5m long x 3.9m wide x 3.0m high cabin. Outside: 8.13m long x 4.0m wide x 4.45m high

  • Extra width and height 3 leaf door opening, for easier entry and exit. 3m wide x 2.9m high.

  • Surface mounted with unique roof mounted plant


    • LCV booth comes with our 4kw low noise centrifugal fans with an air flow of 18,000 m3.

  • Double skin, pre-coated white polyester finish, inside and out

  • Running costs of less than £2.50/hour

  • Ducting package included: x2 3.0m spiral + inlet and outlet cowls

  • Extra ductwork available at a cost

  • Suitable for use with water based paints

  • Booths available from stock, for quick delivery and installation

  • Fully detailed operating manual provided

  • Dedicated installation helpline

To Enquire about our SpaceSaver Spray Booth click here

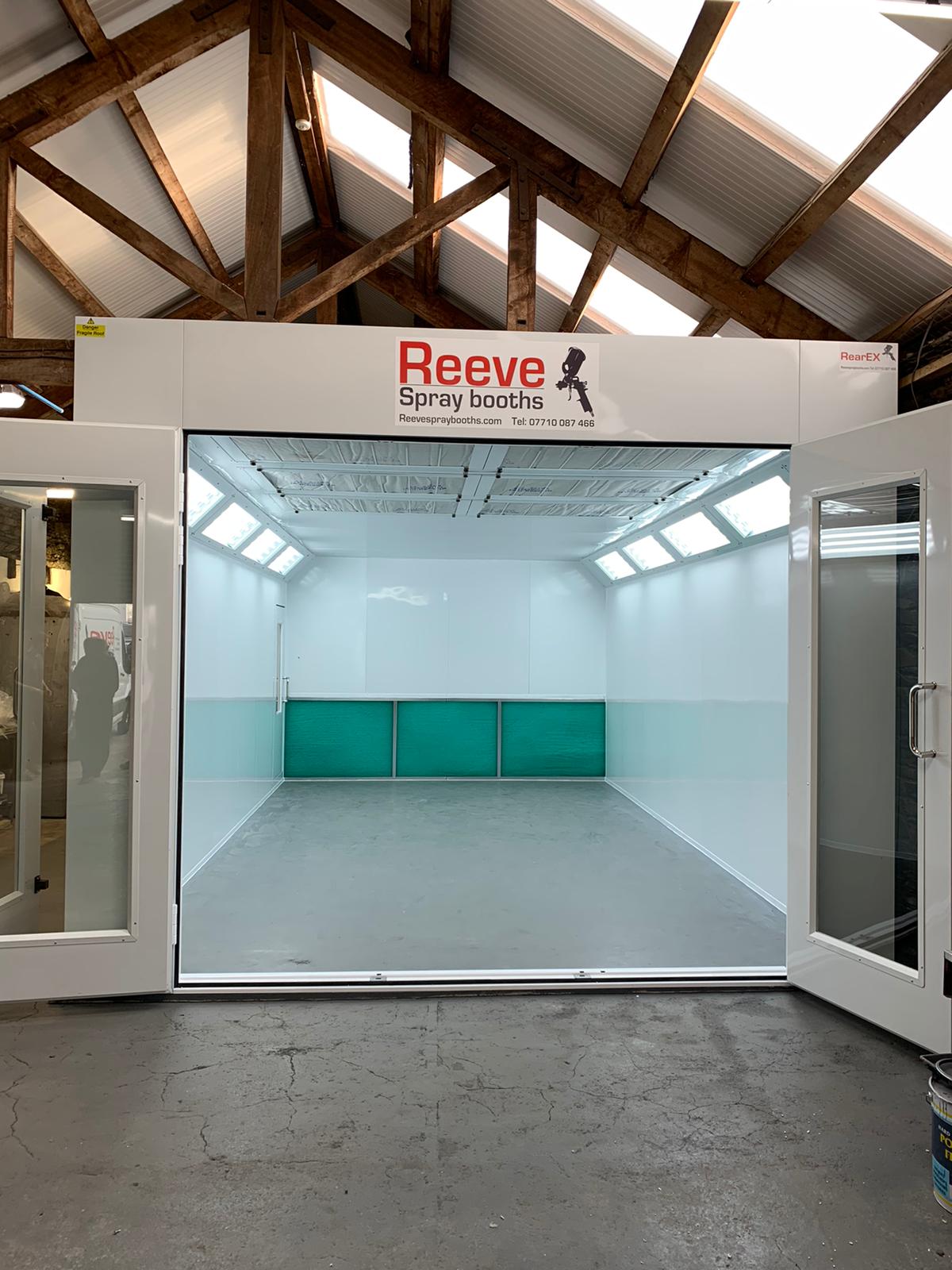

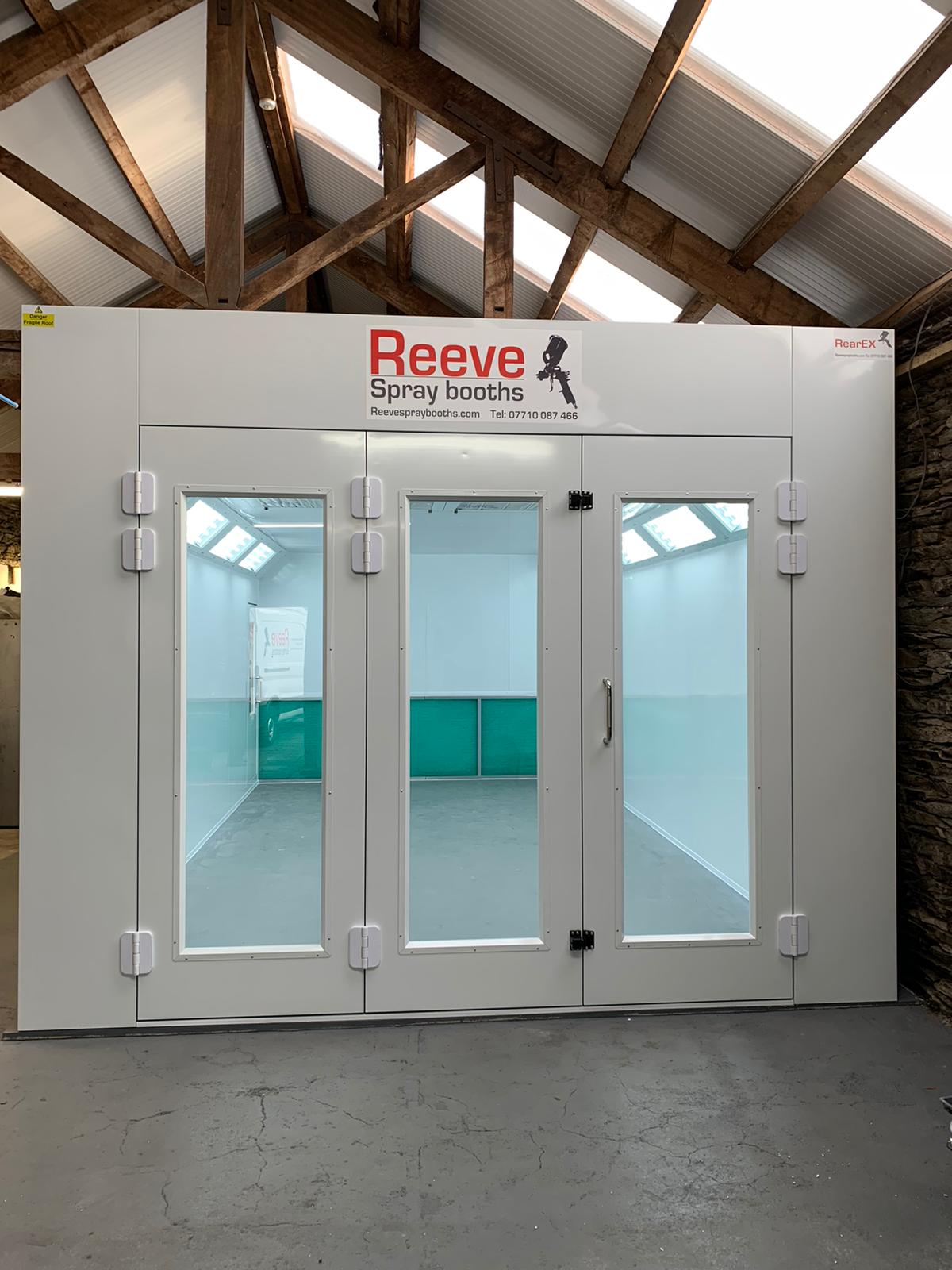

REAR EX BOOTH

Our RearEx Spray booth uses an extraction chest that sits at the rear of the booth (side is also an option),instead of the usual pit extraction with the side extraction plant, Allow an extra 1.5m to overall booth size for the plant. This spray booth is great for units with low height ceilings as the plant sits on top of the extraction chest, and sits no higher than the spray booth itself. It is easier to maintain as well because it's all at floor level and is easily accessible. The rear chest is convenient as there is no ground work needed before the installation.
Prices start at:- Standard £19,499 + VAT, fitted.

Specifications

  • LCV: Inside: 8.0m long x 3.9m wide x 3.0m high cabin. Outside: 8.13m long x 4.0m wide x 3.5m high
  • Extra width and height 3 leaf door opening, for easier entry and exit. 3m wide x 2.9m high.
  • LCV booth comes with our 4kw low noise centrifugal fans with an air flow of 18,000 m3.
  • Double skin, pre-coated white polyester finish, inside and out
  • Running costs of less than £2.50/hour
  • Ducting package included: x2 3.0m spiral + inlet and outlet cowls
  • Extra ductwork available at a cost
  • Suitable for use with water based paints
  • Booths available from stock, for quick delivery and installation
  • Fully detailed operating manual provided
    Dedicated installation helpline
  • Surface mounted with unique rear extraction chest

To Enquire about our RearEx Spray Booth click here




CENTRAL DOWN DRAUGHT BOOTH

The central down draught booth has full roof inlet filtration and extraction from a 5.0m x 2.0m central pit, which gives an even air flow through the booth. The plant can be put on either side or the rear of the booth, allow an extra 1.5m to overall booth size for the plant.

Prices start at:- Standard: £20,499 + VAT, fitted.

Specifications

  • LCV: Inside: 8.0m long x 3.9m wide x 3m high cabin. Outside: 8.13m long x 4m wide x 3.5m high

  • Extra width and height 3 leaf door opening, for easier entry and exit. 3m wide x 2.9m high.

  • Either side or rear  mounted plant


    • LCV booth comes with our 4kw low noise centrifugal fans with an air flow of 18,000 m3.

  • Double skin, pre-coated white polyester finish, inside and out

  • Running costs of less than £2.50/hour

  • Ducting package included: x2 3.0m spiral + inlet and outlet cowls

  • Extra ductwork available at a cost

  • Suitable for use with water based paints

  • Booths available from stock, for quick delivery and installation

  • Fully detailed operating manual provided

  • Dedicated installation helpline

To Enquire about our Down Draught Spray Booth click here
